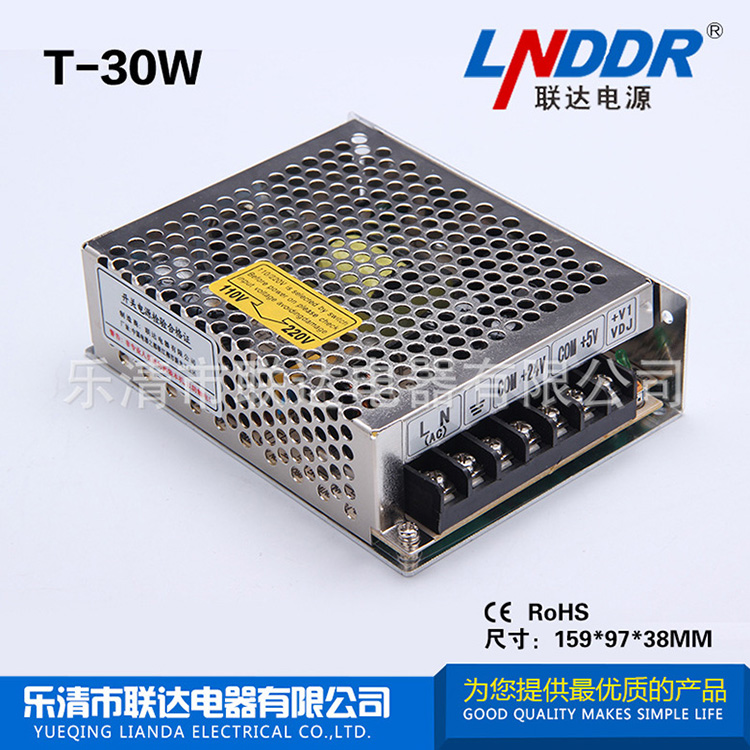

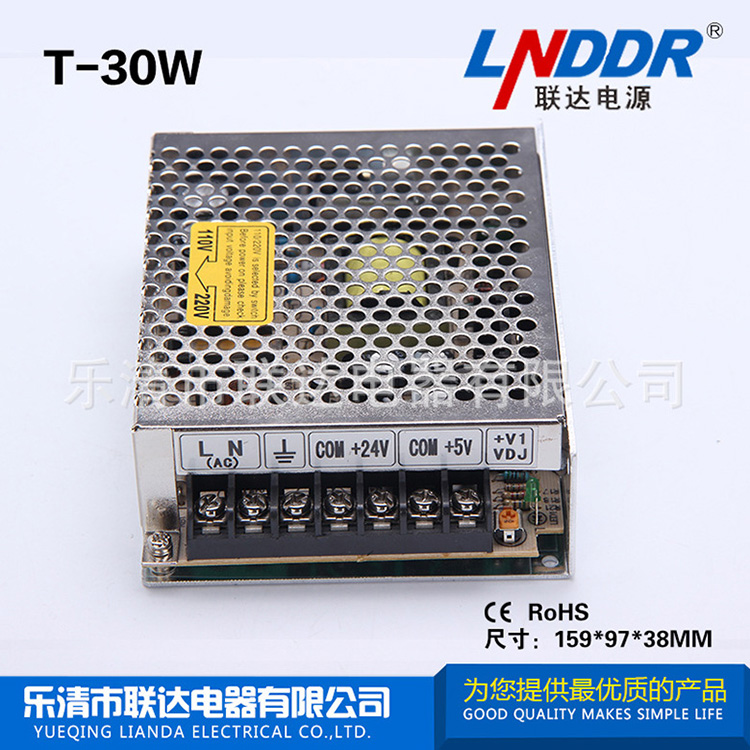

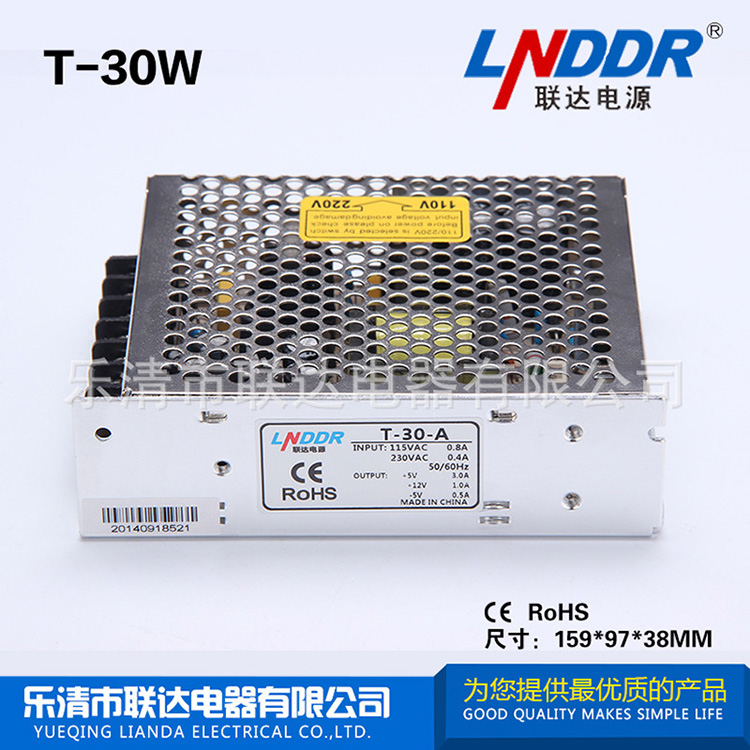

EN開關電源 聯(lián)達電器直銷 T-30W工控電源 小體積開關電源 監(jiān)控電源
| 型號 | 輸出 | 差值 | 范圍 | 效率 |
| T-30A | 5V,0.5~3A | ±2% | 50mV | 70% |
| 12V,0.1~1A | ±2,-6% | 100mV | ||
| -5V,0.1~0.5A | ±2-10% | 50mV | ||
| T-30B | 5V,0.5~3A | ±2% | 50mV | 72% |
| 12V,0.1~1A | ±2,6% | 100mV | ||
| -12V,0.1~0.5A | ±6% | 100mV |
| 輸入電壓范圍 | 85~132VAC/170~264VAC 47~63Hz 240~370VDC |
| 輸入電流 | 0.8A/115V 0.45A/230V |
| 沖擊電流 | 冷啟動電流 18A/115V 36A/230V |
| 漏電電流 | ＜0.75mA/240VAC |
| 直流電壓可調范圍 | 額定輸出電壓的±10% |
| 過載保護 | 105~150%切斷輸出，自動恢復 |
| 過電壓保護 | 115~135% |
| 啟動、上升、保持時間 | 200ms 100ms 30ms |
| 耐壓性 | I/P-O/P:1.5KvAC 1minute I/P-FG:1.5KvAC 1minute O/P-FG:0.5KvAC 1minute |
| 工作溫度、濕度 | -10℃~+60℃,20%~90%RH |
| 重量/包裝 | 0.4kg,45pcs/18kg |
